Description

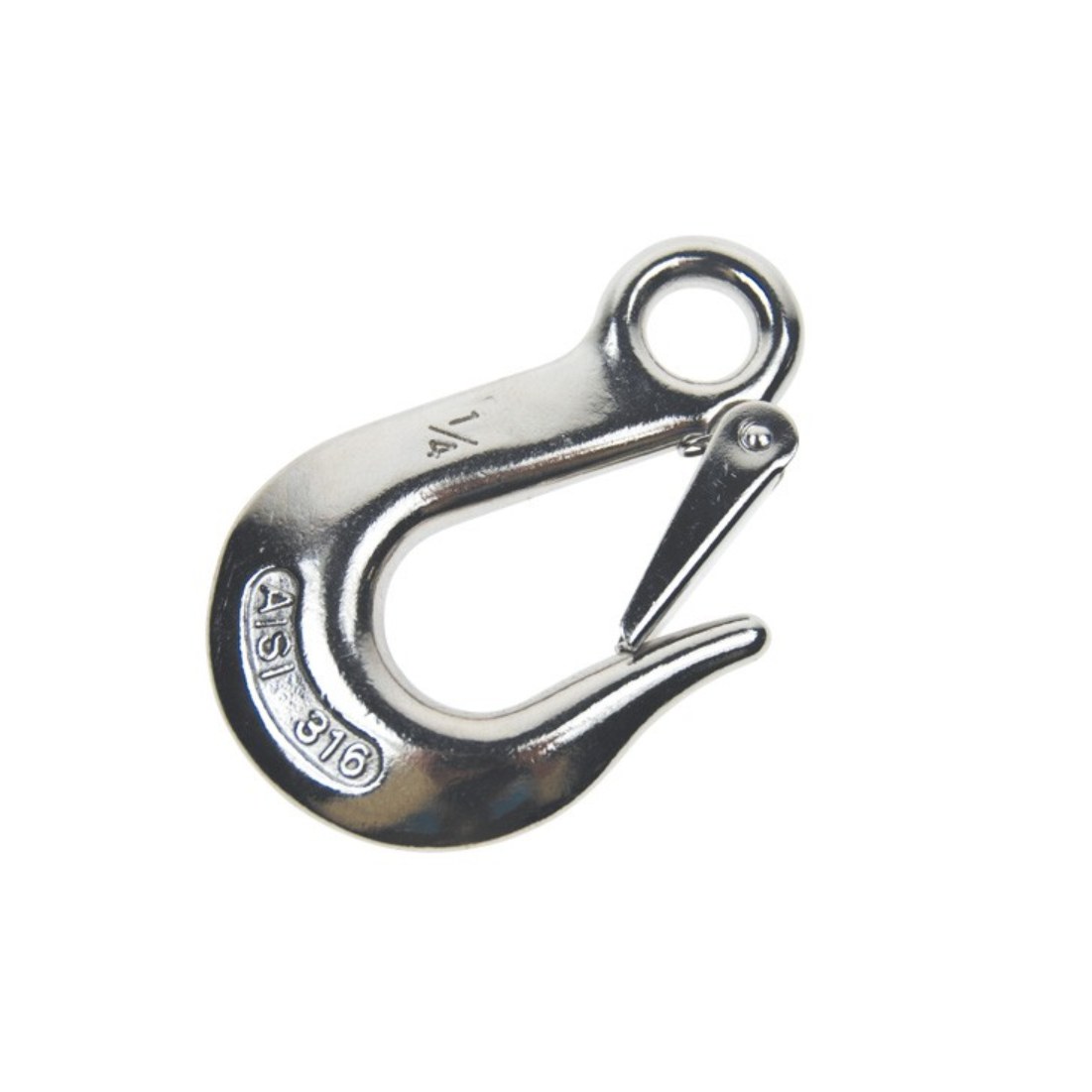

This eye slip hook with latch has a round throat that lets a sling or ring seat fully, plus a spring latch to keep it there. The eye takes a shackle or quick link, and the WLL is 880 to 2,640 lb, depending on size.
Use it for hoists, chain slings and general lifting where the hook needs to come off easily.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 880 to 2,640 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 1/2" |
| Weight per piece | 0.35 to 1.9 lb, by size |
Dimensions by Size
| Part No. | Size | Chain size | B: Eye inside diameter | E: Throat opening | R: Reach | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6ESHK-14L | 1/4" | 1/4" | 1/2" | 19/32" | 2" | 0.35 | 880 |
| MT6ESHK-516L | 5/16" | 5/16" | 5/8" | 5/8" | 2-5/16" | 0.55 | 1,320 |
| MT6ESHK-38L | 3/8" | 3/8" | 5/8" | 9/16" | 2-5/8" | 0.90 | 1,760 |
| MT6ESHK-12L | 1/2" | 1/2" | 7/8" | 29/32" | 3-1/4" | 1.90 | 2,640 |
All dimensions in inches unless noted. B = Eye inside diameter, E = Throat opening, R = Reach.
Ships direct. Shipping is calculated at checkout.
