Description

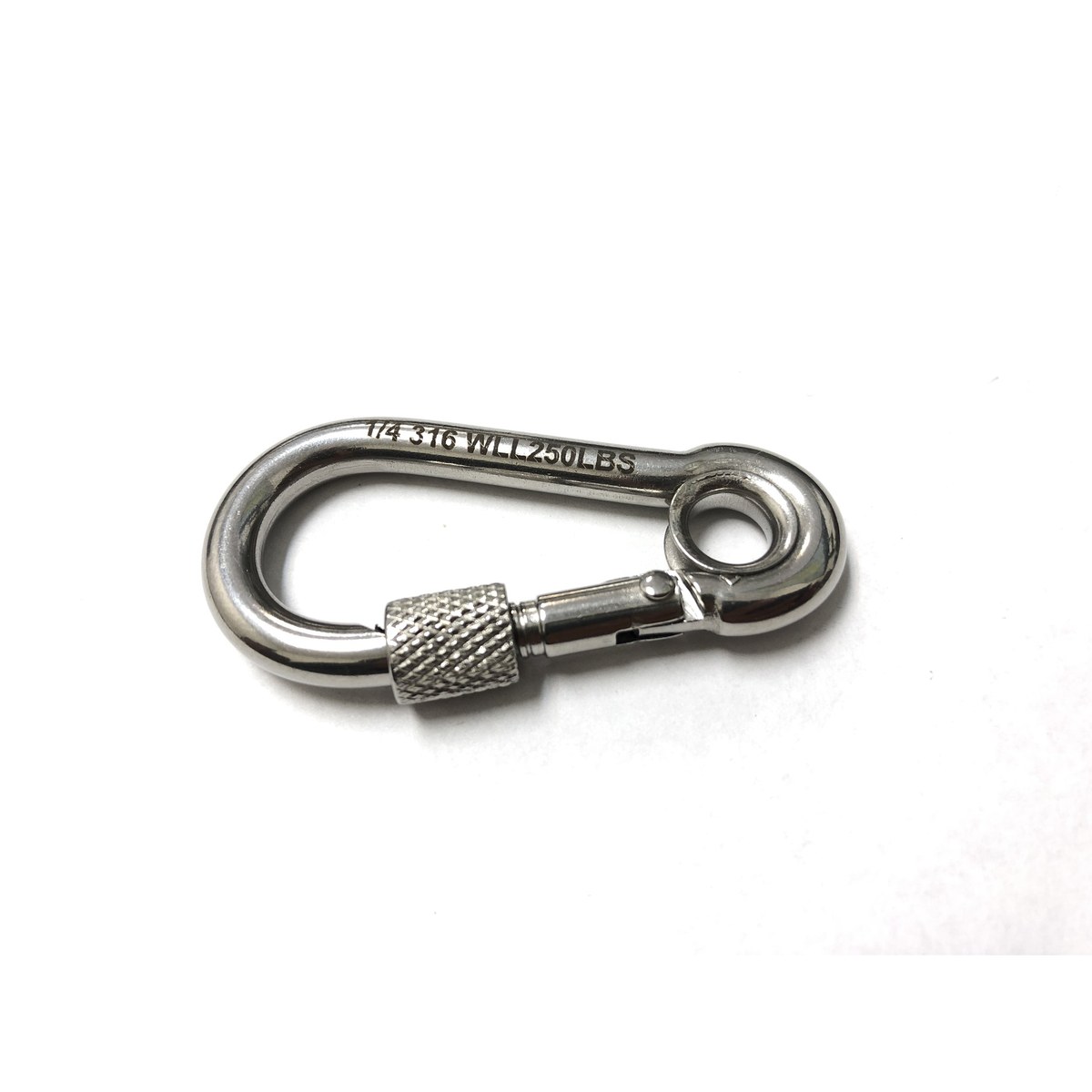

This snap hook with eyelet and screw nut combines a rope-friendly eye with a gate you can lock. Thread the nut over the gate and the hook stays closed. The WLL is 250 to 1,000 lb, depending on size.
Use it on lines that stay connected for long periods, like mooring pennants, hanging gear and awning ties.
Features
- Eyelet end for attaching to rope or webbing
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 250 to 1,000 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 7/16", 15/32" |
| Weight per piece | 0.062 to 0.563 lb, by size |

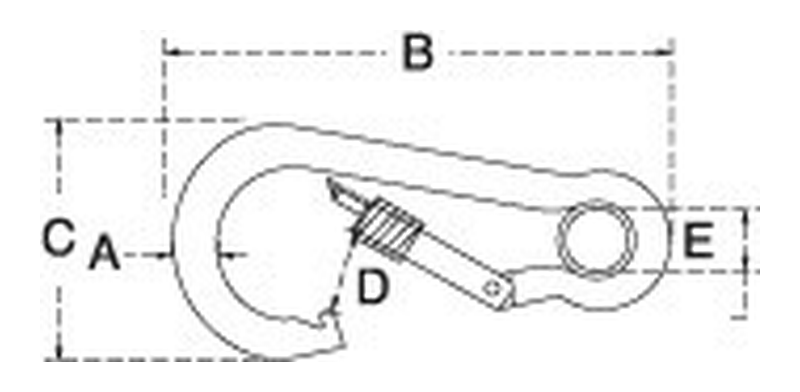

Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Overall length | C: Overall height | D: Gate opening | E: Eyelet inside diameter | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|---|
| MT6SHK-14NE | 1/4" | 1/4" | 2-3/8" | 1-3/16" | 1/4" | 5/16" | 0.062 | 250 |
| MT6SHK-516NE | 5/16" | 5/16" | 3-1/8" | 1-9/16" | 3/8" | 3/8" | 0.150 | 400 |
| MT6SHK-38NE | 3/8" | 3/8" | 4" | 2" | 3/8" | 9/16 | 0.280 | 600 |
| MT6SHK-716NE | 7/16" | 7/16" | 4-3/4" | 2-5/16" | 9/16" | 9/16" | 0.425 | 650 |
| MT6SHK-1532NE | 15/32" | 15/32" | 5-15/32" | 2-21/32" | 13/16" | 23/32" | 0.563 | 1,000 |
All dimensions in inches unless noted. A = Wire diameter, B = Overall length, C = Overall height, D = Gate opening, E = Eyelet inside diameter.
Ships direct. Shipping is calculated at checkout.
