Description

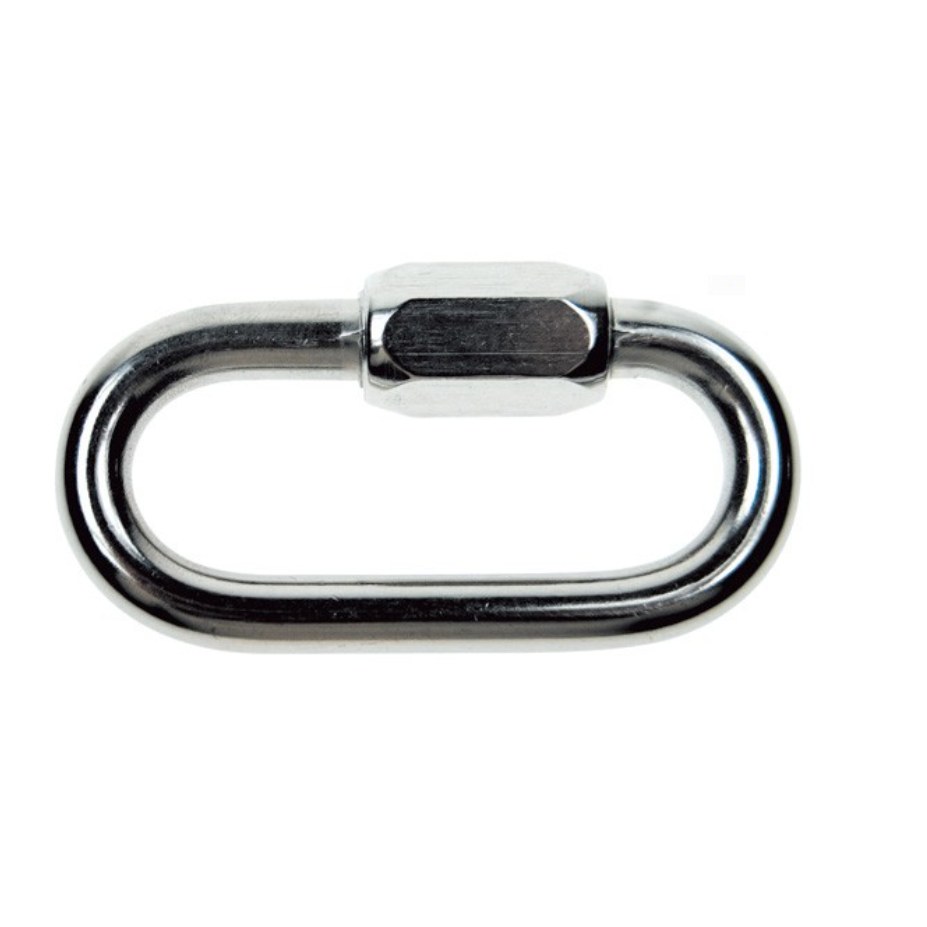

This 316 stainless quick link closes with a threaded sleeve. It is a simple, strong way to join chain, rope and fittings that you may want to take apart later. Sizes run from 1/8" (200 lb) to 9/16" (7,700 lb).
Use it to connect chain to an anchor, add a swing or hammock hanger, or link fittings on boats and docks.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 200 to 7,700 lb, by size |
| Sizes | 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 11/32", 15/32", 9/16" |
| Weight per piece | 0.02 to 0.8 lb, by size |

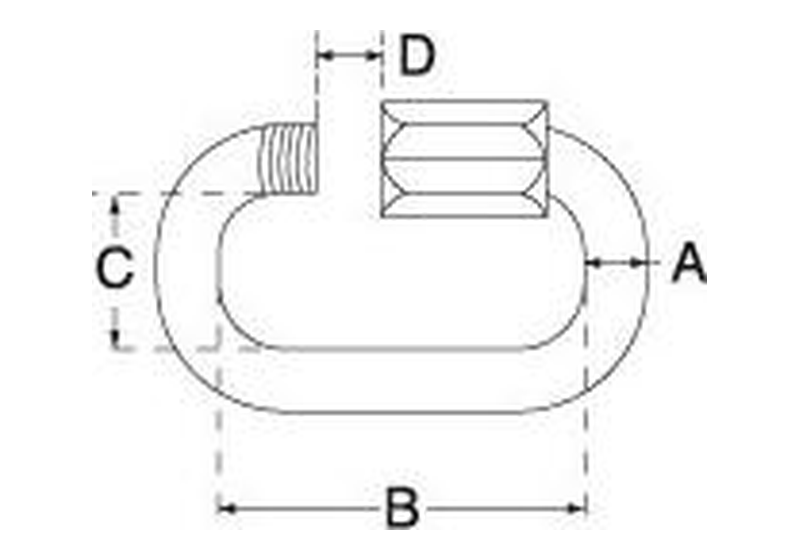

Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Overall length | C: Inside width | D: Gate opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6QKL-18 | 1/8" | 1/8" | 1-5/32" | 3/8" | 7/32" | 0.02 | 200 |
| MT6QKL-532 | 5/32" | 5/32" | 1-3/16" | 15/32" | 3/16" | 0.03 | 300 |
| MT6QKL-316 | 3/16" | 3/16" | 1-1/2" | 1/2" | 1/4" | 0.05 | 800 |
| MT6QKL-14 | 1/4" | 1/4" | 1-13/16" | 9/16" | 5/16" | 0.08 | 1,200 |
| MT6QKL-932 | 9/32" | 9/32" | 2-1/16" | 5/8" | 11/32" | 0.12 | 1,400 |
| MT6QKL-516 | 5/16" | 5/16" | 2-1/4" | 3/4" | 3/8" | 0.16 | 2,000 |
| MT6QKL-38 | 3/8" | 3/8" | 2-3/4" | 7/8" | 1/2" | 0.28 | 2,500 |
| MT6QKL-1132 | 11/32" | 11/32" | 2-7/16" | 13/16" | 7/16" | 0.22 | 2,300 |
| MT6QKL-1532 | 15/32" | 15/32" | 3-7/32" | 15/160" | 9/16" | 0.47 | 5,000 |
| MT6QKL-916 | 9/16" | 9/16" | 3-3/4" | 1-3/32" | 11/16" | 0.80 | 7,000 |
All dimensions in inches unless noted. A = Wire diameter, B = Overall length, C = Inside width, D = Gate opening.
