Description

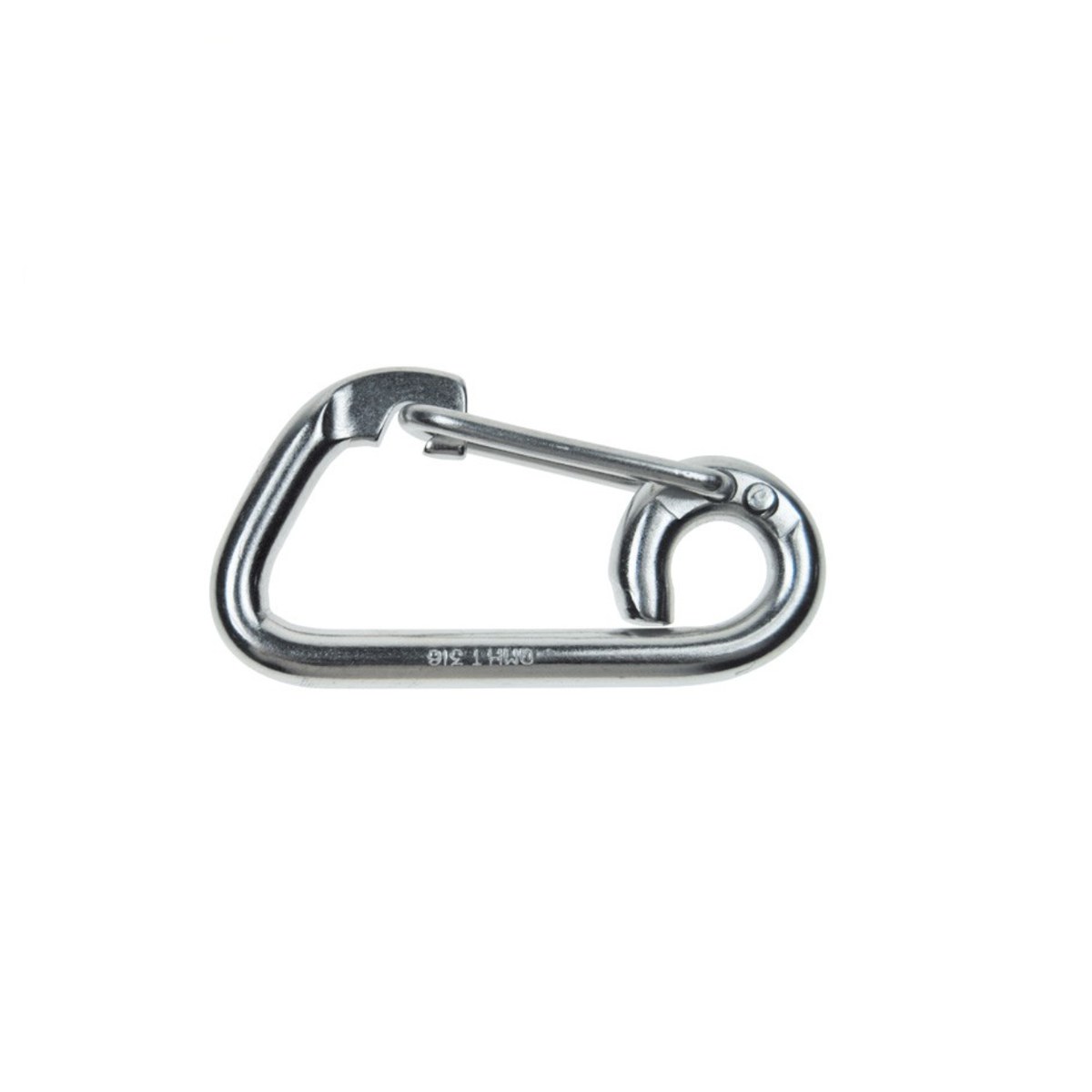

The flat base of this triangle harness clip keeps webbing lying flat and centered. It has a spring gate and a working load limit of 250 to 1,500 lb by size.
It is used on bag and tool straps, boat covers, pet harnesses and webbing tie-downs.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 250 to 1,500 lb, by size |
| Sizes | 1/4", 5/16", 3/8", 15/32" |
| Weight per piece | 0.08 to 0.56 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Large-end opening | C: Overall length | D: Small-end opening | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6SPGS-14 | 1/4" | 1/4" | 3/8" | 2-3/8" | 5/16" | 0.08 | 250 |
| MT6SPGS-516 | 5/16" | 5/16" | 1" | 3" | 1/2" | 0.15 | 650 |
| MT6SPGS-38 | 3/8" | 3/8" | 1-5/16" | 3-7/8" | 9/16" | 0.32 | 1,000 |
| MT6SPGS-1532 | 15/32" | 15/32" | 1-1/2" | 4-3/4" | 3/4" | 0.56 | 1,500 |

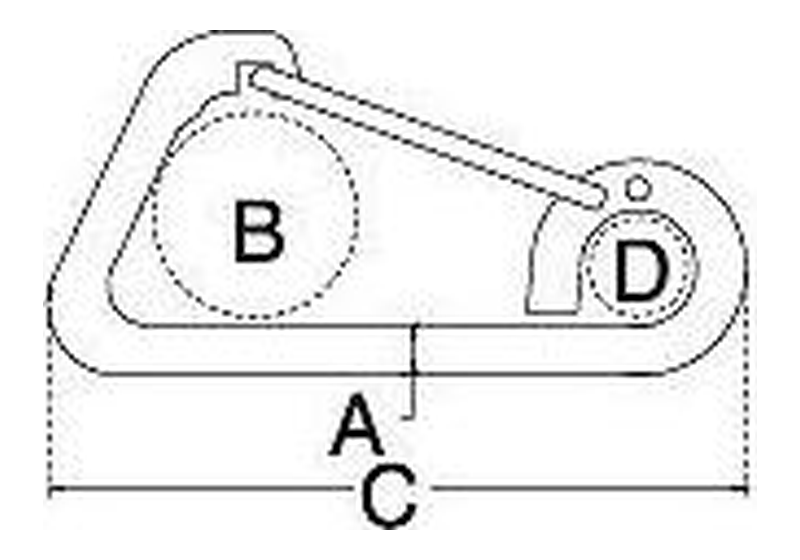

All dimensions in inches unless noted. A = Wire diameter, B = Large-end opening, C = Overall length, D = Small-end opening.
