Description
This zinc plated snap hook is a low-cost spring-gate hook for dry or covered use.
Use it on chains, ropes, dog runs, tarps and light gear.
Features
- Zinc plated finish
Specifications
| Working load limit | 70 to 200 lb, by size |
|---|---|
| Sizes | 3/16", 1/4", 5/16" |
| Weight per piece | 0.04 to 0.15 lb, by size |

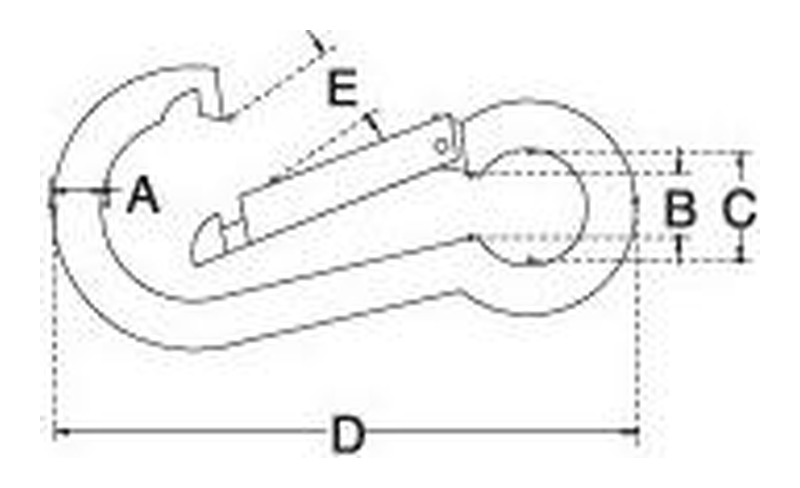

Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Eye inside diameter | C: Eye outside height | D: Overall length | E: Gate opening | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MZSHK-316 | 3/16" | 3/16" | 3/16" | 5/16" | 2" | 1/4" | 70 |
| MZSHK-14 | 1/4" | 1/4" | 1/4" | 5/16" | 2-3/8" | 5/16" | 100 |
| MZSHK-516 | 5/16" | 5/16" | 3/8" | 15/32" | 3-1/8" | 7/16" | 200 |
All dimensions in inches unless noted. A = Wire diameter, B = Eye inside diameter, C = Eye outside height, D = Overall length, E = Gate opening.
Ships direct. Shipping is calculated at checkout.
