Description

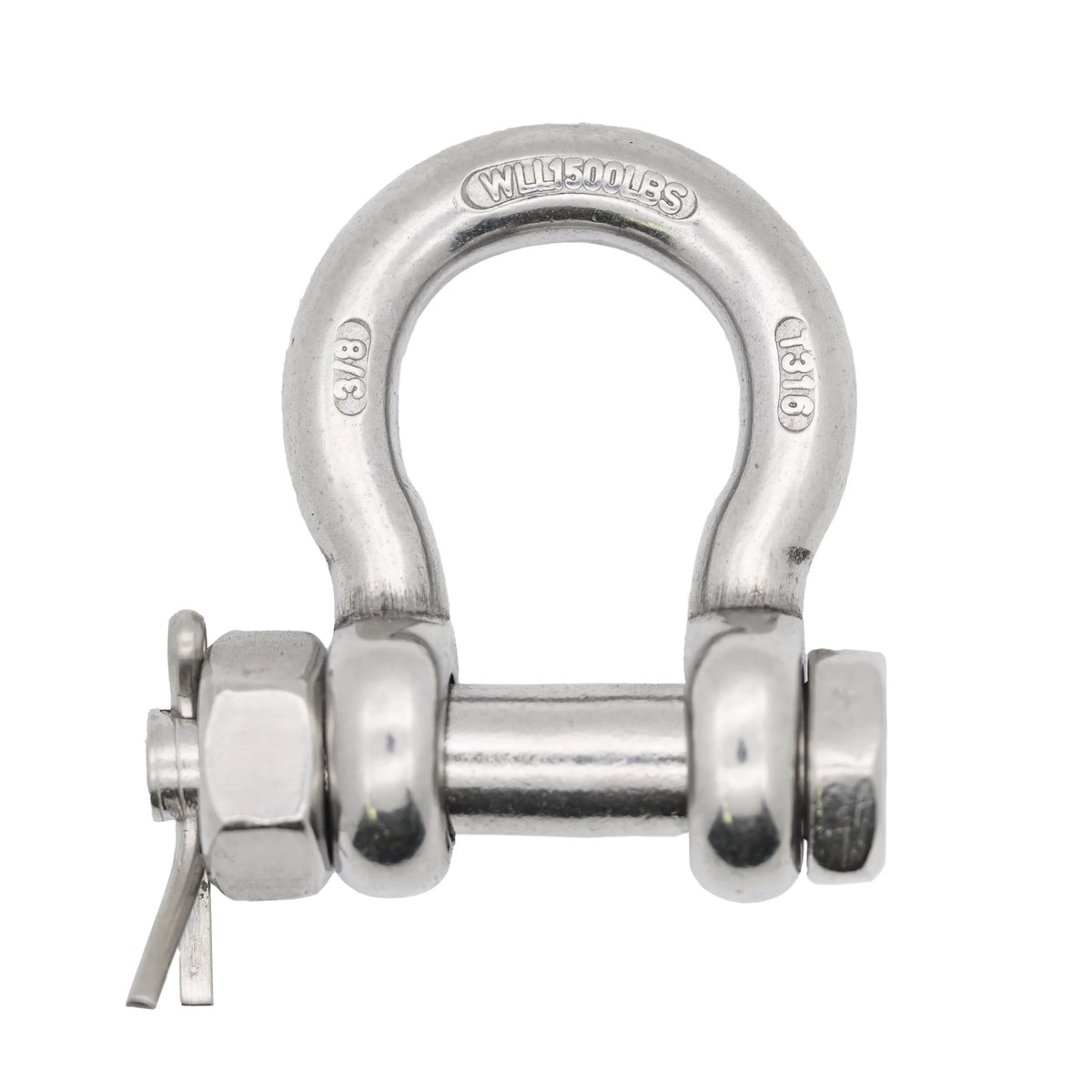

This embedded bolt pin anchor shackle has its markings cast into the body, so you can identify it in the field. It closes with a bolt, nut and cotter pin, and working load limits range from 1,500 to 6,000 lb by size.
It suits inspected rigging where marked hardware is required, as well as long-term marine installs.
Features
- Precision cast body
- Cast construction
- Bolt pin with nut for semi-permanent connections
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 1,500 to 6,000 lb, by size |
| Sizes | 3/8", 1/2", 5/8", 3/4" |
| Weight per piece | 0.3 to 2.2 lb, by size |

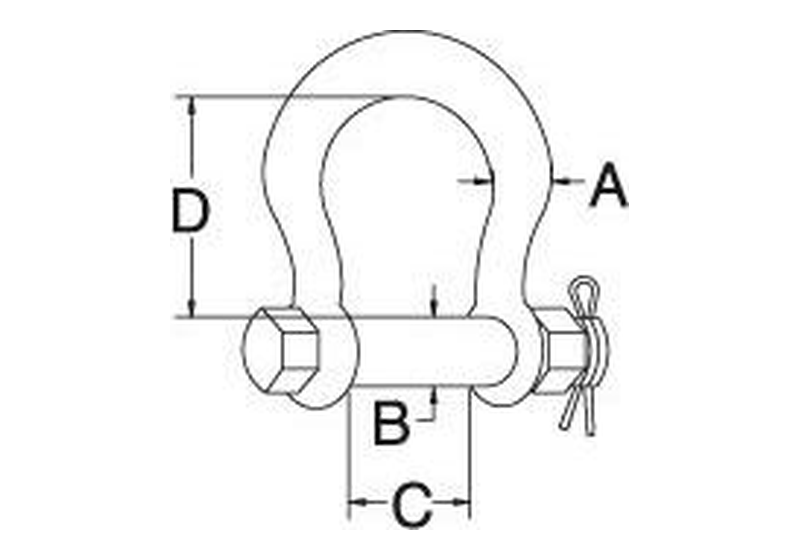

Dimensions by Size
| Part No. | Size | A: Body diameter | B: Pin diameter | C: Inside width | D: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6BPASHK-38EMB | 3/8" | 3/8" | 15/32" | 5/8" | 1-1/2" | 0.30 | 1,500 |
| MT6BPASHK-12EMB | 1/2" | 1/2" | 5/8" | 7/8" | 1-13/16" | 0.66 | 3,000 |
| MT6BPASHK-58EMB | 5/8" | 5/8" | 3/4" | 1-5/32" | 2-1/2" | 1.26 | 4,000 |
| MT6BPASHK-34EMB | 3/4" | 3/4" | 7/8" | 1-5/16" | 3" | 2.20 | 6,000 |
All dimensions in inches unless noted. A = Body diameter, B = Pin diameter, C = Inside width, D = Inside length.
