Description

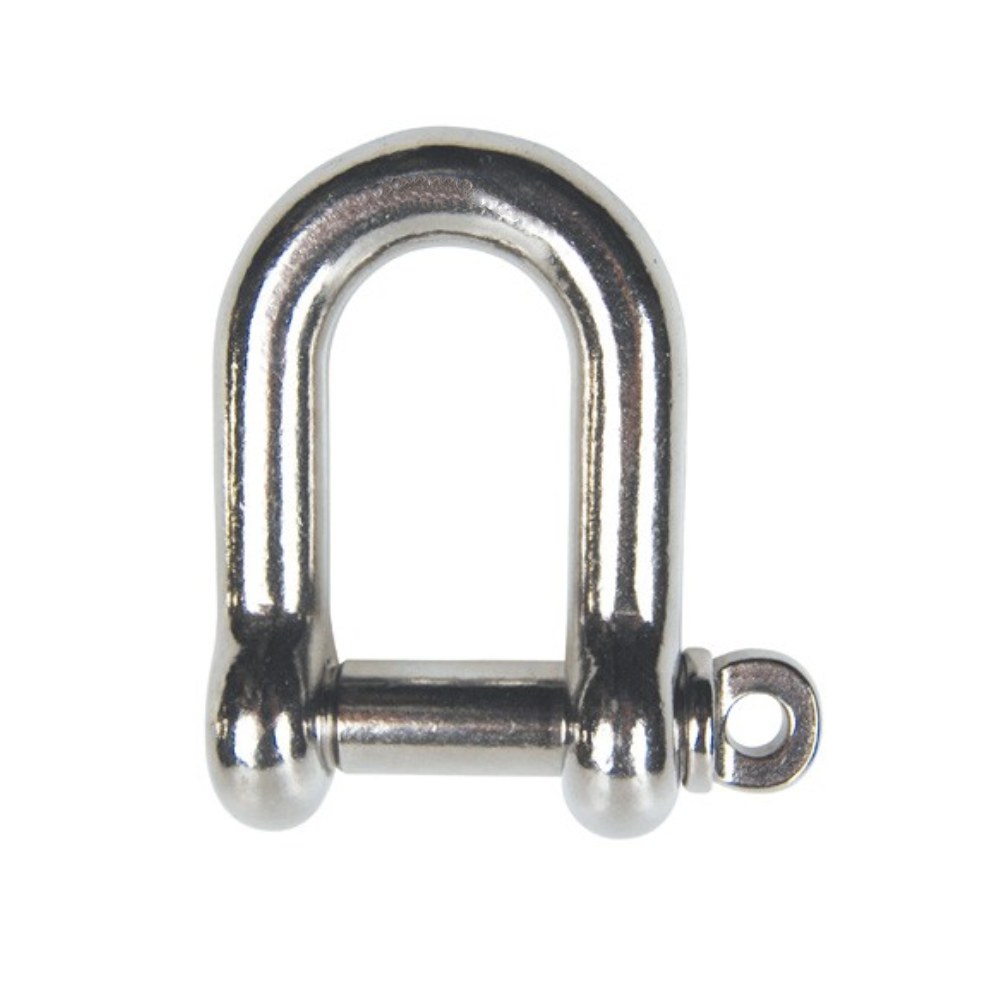

A compact 316 stainless D shackle is the go-to small shackle for boats, shade sails and cable assemblies. Sizes run from 5/32" (350 lb) to 5/8" (4,500 lb), and most sizes also come with a captive pin.
Use it to attach sails, connect cable ends to eye plates and hang light loads.
Features
- Captive pin design
- Screw pin closure
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 350 to 4,500 lb, by size |
| Sizes | 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/32", 1/2", 5/8", 5/32" Captive Pin, 3/16" Captive Pin, 1/4" Captive Pin and 4 more |
| Weight per piece | 0.02 to 1 lb, by size |
Dimensions by Size
| Part No. | Size | A: Body diameter | B: Pin diameter | C: Inside width | D: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6DSH-532 | 5/32" | 5/32" | 5/32" | 11/32" | 5/8" | 0.02 | 350 |
| MT6DSH-316 | 3/16" | 3/16" | 3/16" | 13/32" | 11/16" | 0.04 | 520 |
| MT6DSH-14 | 1/4" | 1/4" | 1/4" | 15/32" | 13/16" | 0.06 | 750 |
| MT6DSH-932 | 9/32" | 9/32" | 9/32" | 1/2" | 1" | 0.11 | 900 |
| MT6DSH-516 | 5/16" | 5/16" | 5/16" | 5/8" | 1-7/32" | 0.13 | 1,300 |
| MT6DSH-38 | 3/8" | 3/8" | 3/8" | 3/4" | 1-3/8" | 0.25 | 1,700 |
| MT6DSH-1532 | 15/32" | 15/32" | 15/32" | 1" | 1-11/16" | 0.56 | 2,850 |
| MT6DSH-12 | 1/2" | 1/2" | 1/2" | 1" | 2" | 0.60 | 2,850 |
| MT6DSH-58 | 5/8" | 5/8" | 5/8" | 1-5/16" | 2-3/8" | 1.00 | 4,500 |
| MT6DSH-532C | 5/32" Captive Pin | 5/32" | 5/32" | 11/32" | 1/2" | 0.02 | 350 |
| MT6DSH-316C | 3/16" Captive Pin | 3/16" | 3/16" | 13/32" | 11/16" | 0.04 | 520 |
| MT6DSH-14C | 1/4" Captive Pin | 1/4" | 1/4" | 15/32" | 13/16" | 0.06 | 750 |
| MT6DSH-516C | 5/16" Captive Pin | 5/16" | 5/16" | 11/16" | 1-9/32" | 0.12 | 1,300 |
| MT6DSH-38C | 3/8" Captive Pin | 3/8" | 3/8" | 3/4" | 1-3/8" | 0.25 | 1,700 |
| MT6DSH-1532C | 15/32" Captive Pin | 15/32" | 15/32" | 1" | 1-11/16" | 0.56 | 2,850 |
| MT6DSH-12C | 1/2" Captive Pin | 1/2" | 1/2" | 1" | 1-5/16" | 0.56 | 2,850 |
All dimensions in inches unless noted. A = Body diameter, B = Pin diameter, C = Inside width, D = Inside length.
