Description

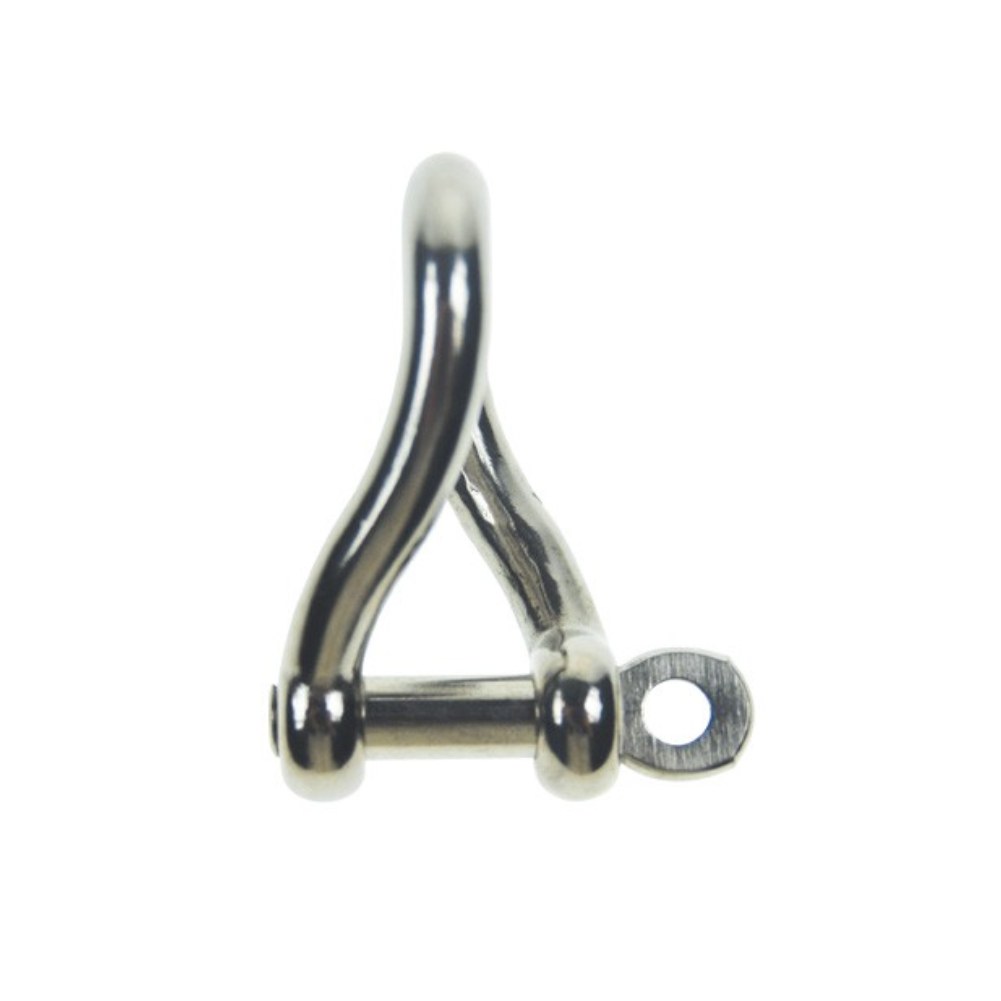

The bow on this twisted shackle is turned a quarter turn. That lets two fittings at right angles connect without a twist in the line. The WLL is 520 to 1,500 lb, depending on size.
It is used on sailboat halyards and blocks, and on any line where the connection points sit at 90 degrees to each other.
Features
- Precision cast body
- Cast construction
- Screw pin closure
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 520 to 1,500 lb, by size |
| Sizes | 3/16", 1/4", 5/16", 3/8", 15/32" |
| Weight per piece | 0.05 to 0.5 lb, by size |
Dimensions by Size
| Part No. | Size | A: Body diameter | B: Pin diameter | C: Inside width | D: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6TWSH-316 | 3/16" | 3/16" | 3/16" | 3/8" | 1-1/16" | 0.05 | 520 |
| MT6TWSH-14 | 1/4" | 1/4" | 1/4" | 7/16" | 1-5/16" | 0.08 | 750 |
| MT6TWSH-516 | 5/16" | 5/16" | 5/16" | 5/8" | 1-3/4" | 0.18 | 1,000 |
| MT6TWSH-38 | 3/8" | 3/8" | 3/8" | 3/4" | 1-7/8" | 0.30 | 1,200 |
| MT6TWSH-1532 | 15/32" | 15/32" | 15/32" | 7/8" | 2-3/8" | 0.50 | 1,500 |

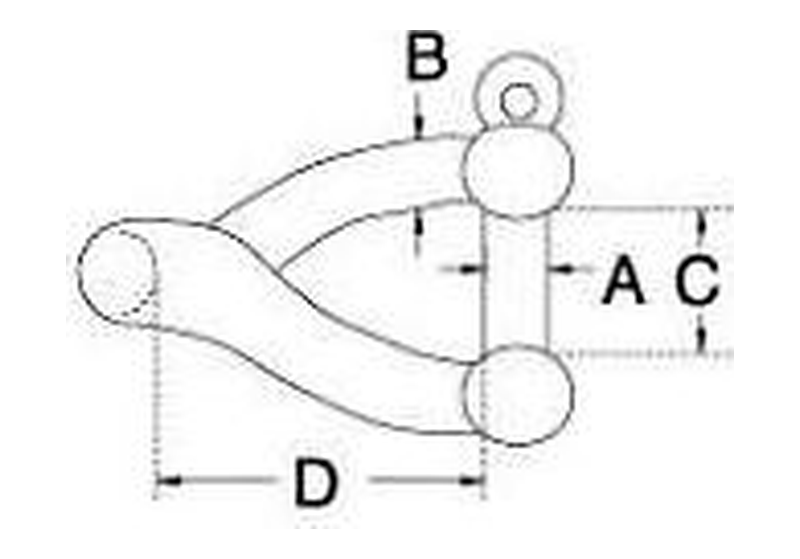

All dimensions in inches unless noted. A = Body diameter, B = Pin diameter, C = Inside width, D = Inside length.
