Description

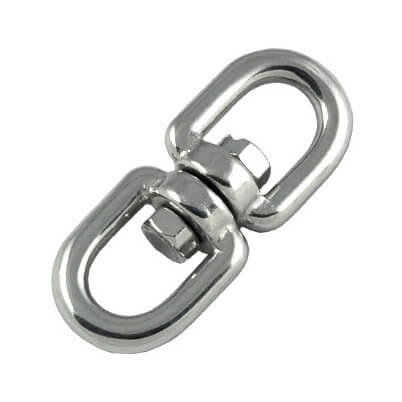

An eye and eye swivel lets two lines or fittings rotate independently, so twist cannot build up in chain or rope.
Use it on anchor rodes, hanging planters and chairs, mooring lines and pulley rigs.
Features
- Swivel action to reduce line twist
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 150 to 9,500 lb, by size |
| Sizes | 5/32", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/8" |
| Weight per piece | 0.04 to 4.7 lb, by size |
Dimensions by Size
| Part No. | Size | A: Wire diameter | B: Eye inside width | C: Eye inside length | D: Overall length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6EESW-532 | 5/32" | 5/32" | 15/32" | 3/8" | 1-27/64" | 0.04 | 150 |
| MT6EESW-316 | 3/16" | 3/16" | 1/2" | 1/2" | 2-9/64" | 0.063 | 300 |
| MT6EESW-14 | 1/4" | 1/4" | 9/16" | 9/16" | 2-9/16" | 0.13 | 600 |
| MT6EESW-516 | 5/16" | 5/16" | 3/4" | 3/4" | 3-3/8" | 0.22" | 1,100 |
| MT6EESW-38 | 3/8" | 3/8" | 15/16" | 1-3/32" | 4-3/8" | 0.44 | 1,500 |
| MT6EESW-716 | 7/16" | 7/16" | 1" | 1-3/32" | 4-3/4" | 0.66 | 1,500 |
| MT6EESW-12 | 1/2" | 1/2" | 1" | 1-3/32" | 4-3/4" | 0.68 | 2,500 |
| MT6EESW-58 | 5/8" | 5/8" | 1-1/2" | 1-11/16 | 7-3/16 | 2.05 | 4,600 |
| MT6EESW-34 | 3/4" | 3/4" | 1-5/8" | 2" | 8-13/16" | 3.65 | 7,000 |
| MT6EESW-78 | 7/8" | 7/8" | 2-1/4" | 1-31/32 | 9-7/64" | 4.70 | 9,500 |

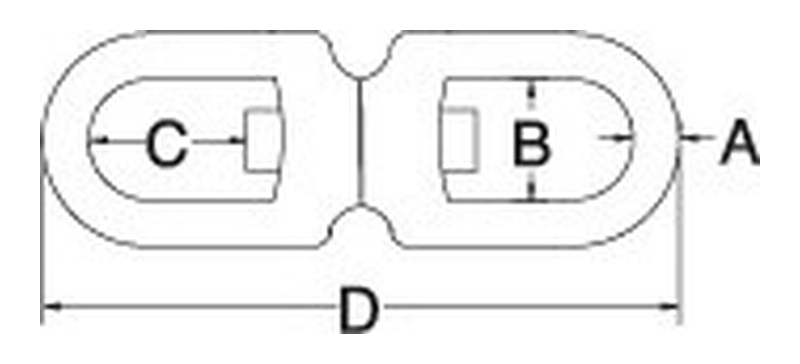

All dimensions in inches unless noted. A = Wire diameter, B = Eye inside width, C = Eye inside length, D = Overall length.
Ships direct. Shipping is calculated at checkout.
