Description
This large stainless pulley has bigger sheaves than our standard blocks. The larger sheave is easier on rope and cable and handles more load.
Use it for boat rigging, lifting setups and heavier rope runs.
Features
- Swivel action to reduce line twist
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 550 to 1,000 lb, by size |
| Sizes | 1" Double Sheave, 1-1/4" Double Sheave, 2" Double Sheave, 1" Single Sheave, 1-1/4" Single Sheave, 2" Single Sheave |
| Weight per piece | 0.3 to 1.4 lb, by size |
Dimensions by Size
| Part No. | Size | A: Sheave diameter | B: Rope size | L: Overall length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6DWPL-25L | 1" Double Sheave | 1" | 1/4" | 4.00" | 0.46 | 550 |
| MT6DWPL-32L | 1-1/4" Double Sheave | 1-1/4" | 5/16" | 4.2" | 0.65 | 600 |
| MT6DWPL-50L | 2" Double Sheave | 2" | 3/8" | 5.64" | 1.40 | 1,000 |
| MT6SWPL-25L | 1" Single Sheave | 1" | 1/4" | 4.00" | 0.30 | 550 |
| MT6SWPL-32L | 1-1/4" Single Sheave | 1-1/4" | 5/16" | 4.36" | 0.45 | 600 |
| MT6SWPL-50L | 2" Single Sheave | 2" | 3/8" | 5.90" | 0.90 | 1,000 |

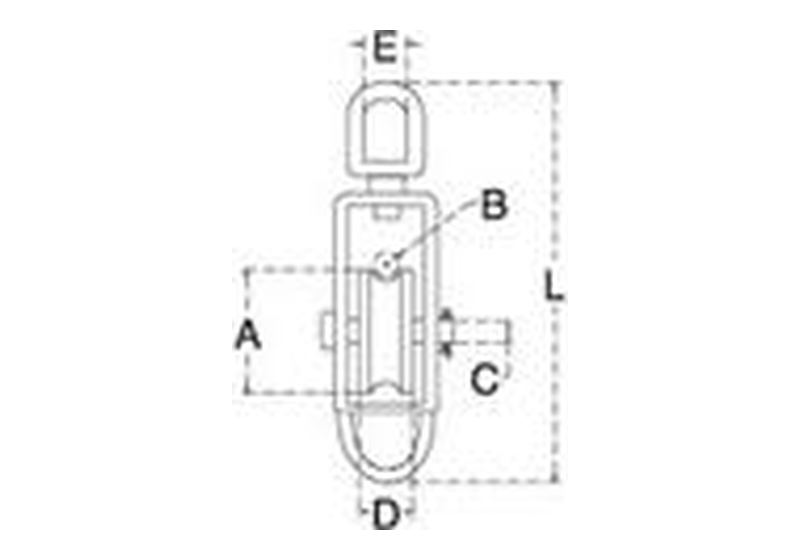

All dimensions in inches unless noted. A = Sheave diameter, B = Rope size, L = Overall length.
