Description

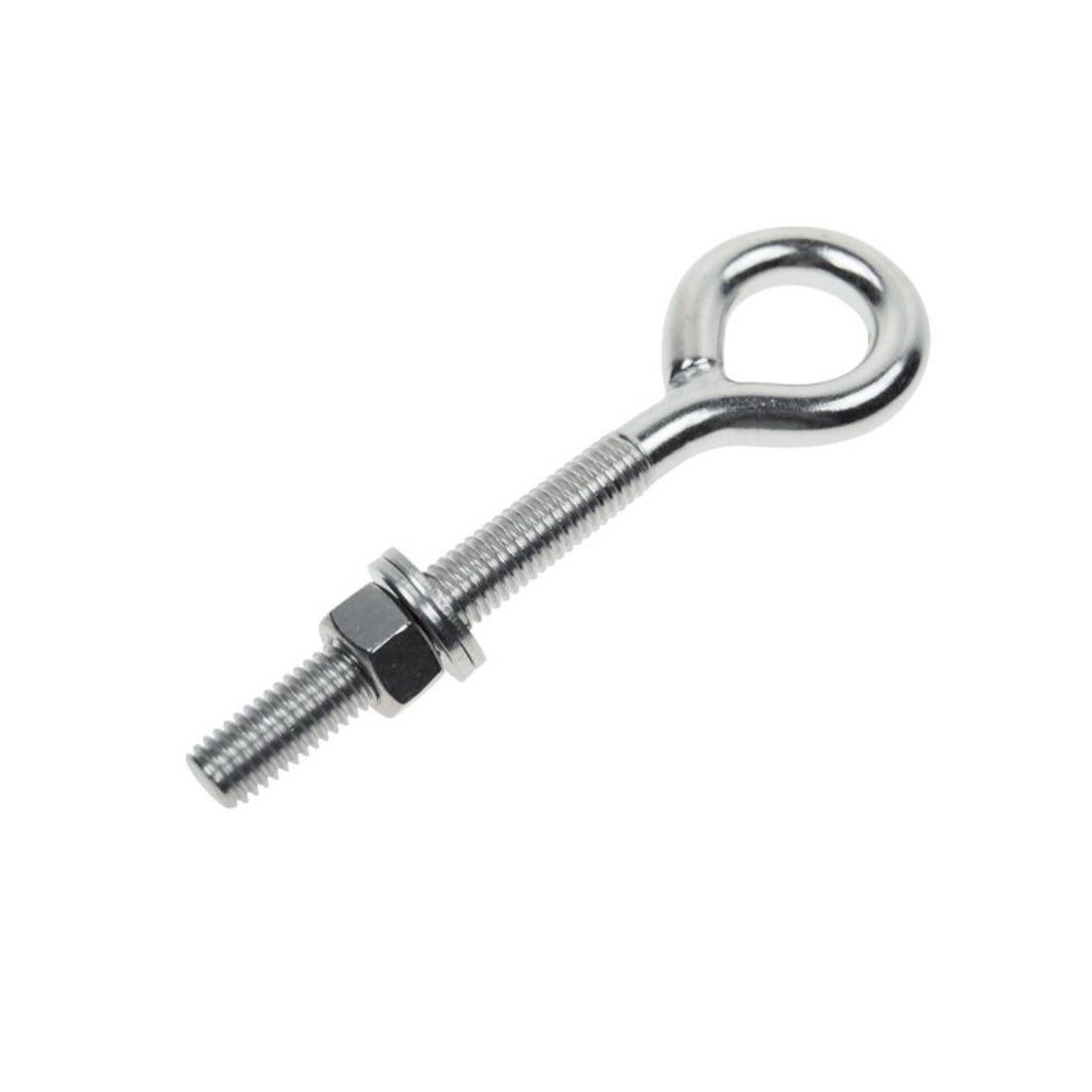

The eye on this welded eye bolt is closed with a weld, so it cannot open up under load. It comes with nuts and washers to bolt through a post or plate. Working load limits range from 150 to 2,400 lb by size.
Use it for through-bolted anchor points on posts, beams and steel plates.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 150 to 2,400 lb, by size |
| Sizes | 3/16" x 1", 1/4" x 1-9/16", 1/4" x 2-3/8" (T6PEB14-238FT), 1/4" x 2-3/8" (T6PEB14-3316FT), 1/4" x 4", 1/4" x 6", 5/16" x 3-3/16", 5/16" x 4", 3/8" x 4", 3/8" x 6", 1/2" x 4", 1/2" x 6" and 2 more |
| Weight per piece | 0.02 to 1.37 lb, by size |
Dimensions by Size
| Part No. | Size | A: Diameter | B: Thread length | D: Eye inside diameter | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6PEB316-1FT | 3/16" x 1" | 3/16" | 1" | 5/16" | 0.02 | 150 |
| MT6PEB14-1916FT | 1/4" x 1-9/16" | 1/4" | 1-9/16" | 1/2" | 0.05 | 400 |
| MT6PEB14-238FT | 1/4" x 2-3/8" (T6PEB14-238FT) | 1/4" | 2-3/8" | 1/2" | 0.06 | 400 |
| MT6PEB14-3316FT | 1/4" x 2-3/8" (T6PEB14-3316FT) | 1/4" | 3-3/16" | 1/2" | 0.07 | 400 |
| MT6PEB14-4FT | 1/4" x 4" | 1/4" | 4" | 1/2" | 0.08 | 400 |
| MT6PEB14-6FT | 1/4" x 6" | 1/4" | 6" | 1/2" | 0.10 | 400 |
| MT6PEB516-3316FT | 5/16" x 3-3/16" | 5/16" | 3-3/16" | 5/8" | 0.12 | 600 |
| MT6PEB516-4FT | 5/16" x 4" | 5/16" | 4" | 5/8" | 0.12 | 600 |
| MT6PEB38-4FT | 3/8" x 4" | 3/8" | 4" | 3/4" | 0.18 | 1,000 |
| MT6PEB38-6FT | 3/8" x 6" | 3/8" | 6" | 3/4" | 0.26 | 1,000 |
| MT6PEB12-4FT | 1/2" x 4" | 1/2" | 4" | 15/16" | 0.45 | 1,800 |
| MT6PEB12-6FT | 1/2" x 6" | 1/2" | 6" | 15/16" | 0.45 | 1,800 |
| MT6PEB58-12FT | 5/8" x 12" | 5/8" | 12" | 1-5/16" | 1.37 | 2,400 |
| MT6PEB58-6FT | 5/8" x 6" | 5/8" | 6" | 1-5/16" | 0.95 | 2,400 |
All dimensions in inches unless noted. A = Diameter, B = Thread length, D = Eye inside diameter.
