Description

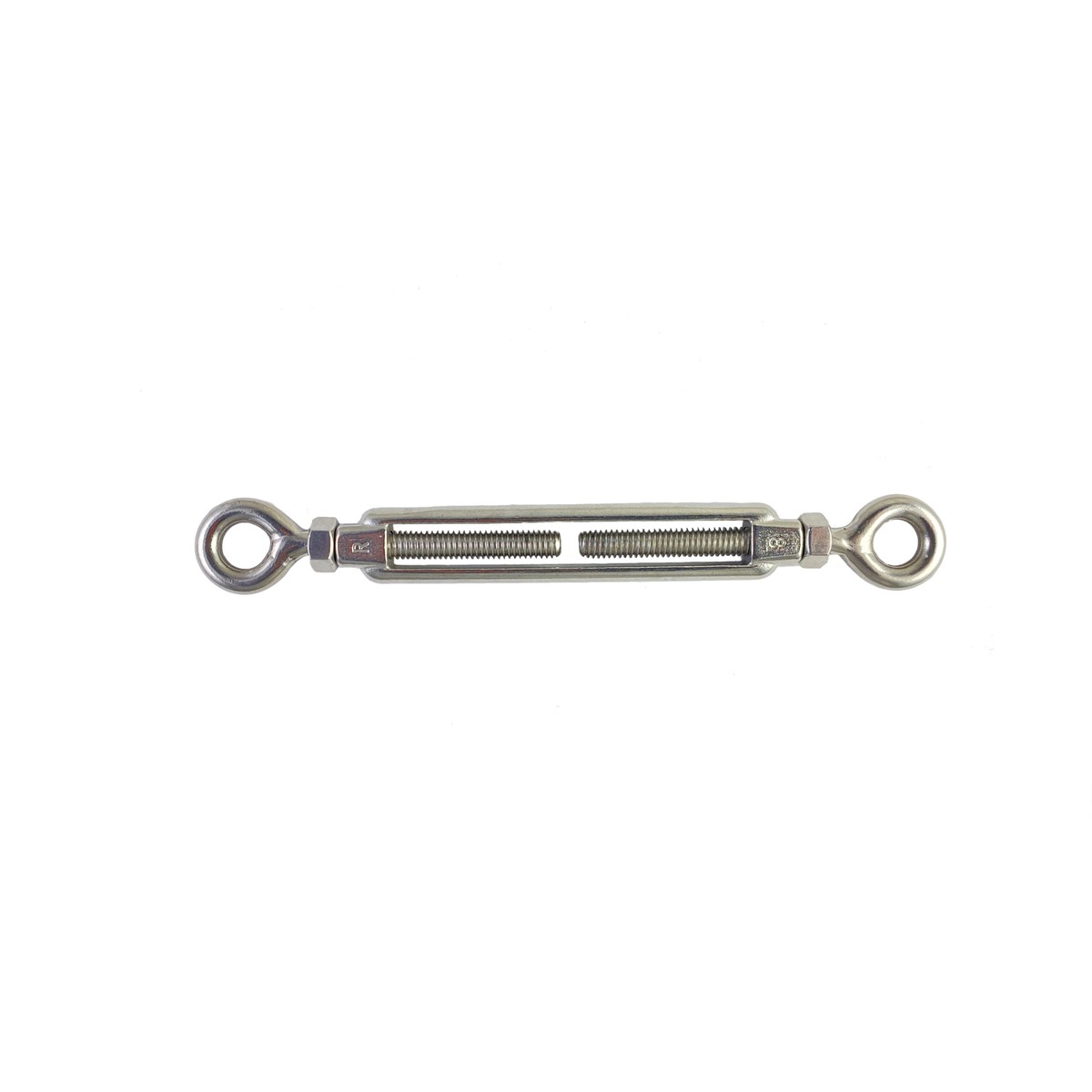

A European eye and eye turnbuckle takes a shackle, hook or cable eye at both ends, so it is the most flexible style to install. UNC and metric versions are available.
Use it for shade sails, fences, gates and light rigging.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 320 to 2,200 lb, by size |
| Sizes | 3/16″ x 2.22″, 1/4″ x 2.73″, 5/16″ x 3.69″, 3/8″ x 4.72″, 1/2″ x 6.53″, 3/16″ x 2.22″ Metric, 5/16″ x 3.69″ Metric |
| Weight per piece | 0.1 to 1 lb, by size |
Dimensions by Size
| Part No. | Size | A: Thread size | B: Body length | C: Overall length, closed | D: Eye inside diameter | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6OBTBK-EE316 | 3/16″ x 2.22″ | 3/16″ | 2.25″ | 4.07″ | 0.42″ | 0.10 | 320 |
| MT6OBTBK-EE14 | 1/4″ x 2.73″ | 1/4″ | 2.72″ | 5.08″ | 0.42″ | 0.20 | 450 |
| MT6OBTBK-EE516 | 5/16″ x 3.69″ | 5/16″ | 3.70″ | 6.31″ | 0.50″ | 0.38 | 850 |
| MT6OBTBK-EE38 | 3/8″ x 4.72″ | 3/8″ | 4.82″ | 8.00″ | 0.60″ | 0.60 | 1,260 |
| MT6OBTBK-EE12 | 1/2″ x 6.53″ | 1/2″ | 6.61″ | 10.05″ | 0.70″ | 1.00 | 2,200 |
| MT6OBTBK-EE316M | 3/16″ x 2.22″ Metric | M5 | 2.25″ | 4.07″ | 0.42″ | 0.10 | 320 |

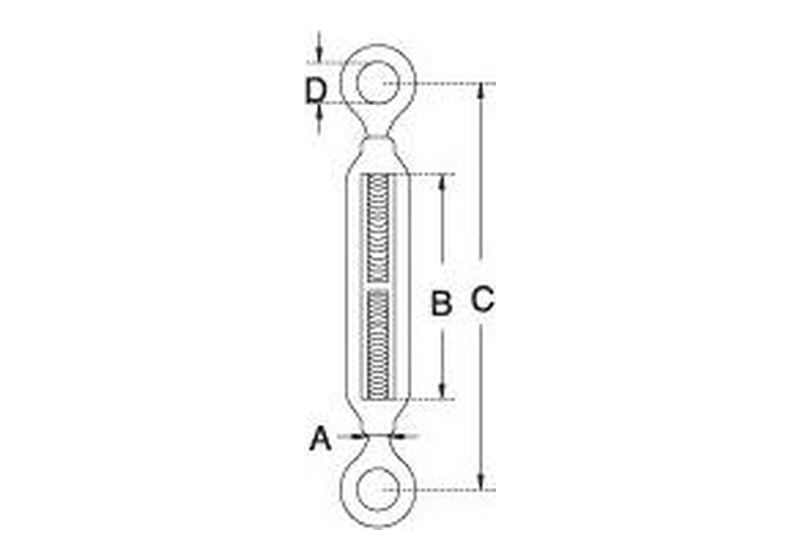

All dimensions in inches unless noted. A = Thread size, B = Body length, C = Overall length, closed, D = Eye inside diameter.
Ships direct. Shipping is calculated at checkout.
