Description

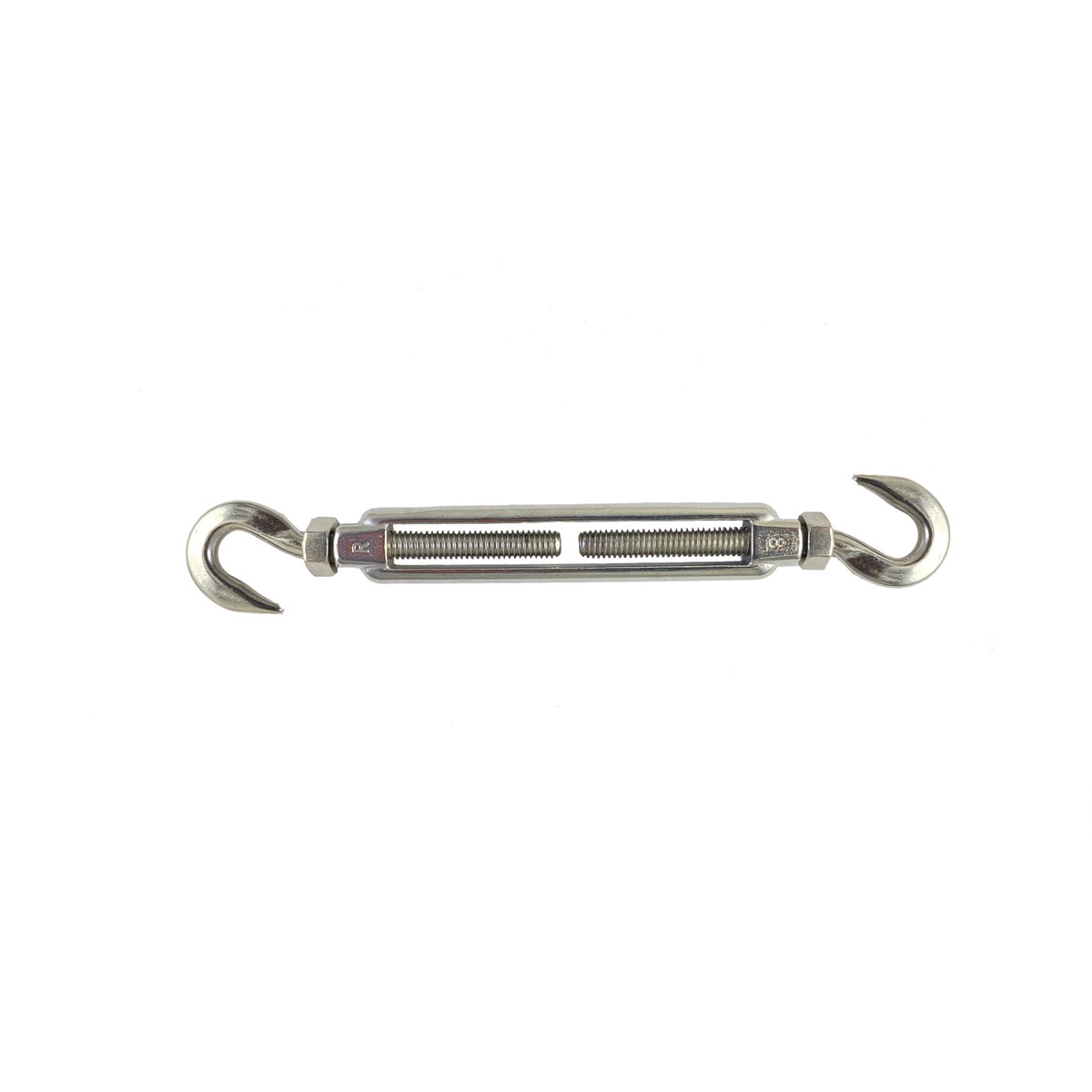

A hook and hook turnbuckle drops onto eyes at both ends, so it can be put on and taken off quickly without tools. Choose UNC or metric threads.
Use it for removable tensioning on gates, fences, nets and light lines. Hooks are not for overhead or shock loads.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 100 to 1,000 lb, by size |
| Sizes | 3/16″ x 2.22″ Metric, 1/4″ x 2.73″ Metric, 5/16″ x 3.69″ Metric, 3/8″ x 4.72″ Metric, 8mm, 3/16″ x 2.22″, 1/4″ x 2.73″, 5/16″ x 3.69″, 3/8″ x 4.72″, 1/2″ x 6.53″ |
| Weight per piece | 0.1 to 1.25 lb, by size |
Dimensions by Size
| Part No. | Size | A: Thread size | B: Body length | C: Overall length, closed | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6OBTBK-HH316M | 3/16″ x 2.22″ Metric | M5 | 2.25″ | 3.75″ | 0.10 | 100 |
| MT6OBTBK-HH14M | 1/4″ x 2.73″ Metric | M6 | 2.72″ | 5.00″ | 0.20 | 200 |
| MT6OBTBK-HH516M | 5/16″ x 3.69″ Metric | M8 | 3.70″ | 6.31″ | 0.38 | 400 |
| MT6OBTBK-HH38M | 3/8″ x 4.72″ Metric | M10″ | 4.82″ | 8.00″ | 0.60 | 700 |
| MT6OBTBK-HH316 | 3/16″ x 2.22″ | 3/16″ | 2.25″ | 3.75″ | 0.10 | 100 |
| MT6OBTBK-HH14 | 1/4″ x 2.73″ | 1/4″ | 2.72″ | 5.00″ | 0.20 | 200 |
| MT6OBTBK-HH516 | 5/16″ x 3.69″ | 5/16″ | 3.85″ | 7.31″ | 0.38 | 400 |
| MT6OBTBK-HH38 | 3/8″ x 4.72″ | 3/8″ | 4.82″ | 8.00″ | 0.60 | 700 |
| MT6OBTBK-HH12 | 1/2″ x 6.53″ | 1/2″ | 6.68″ | 10.50″ | 1.25 | 1,000 |

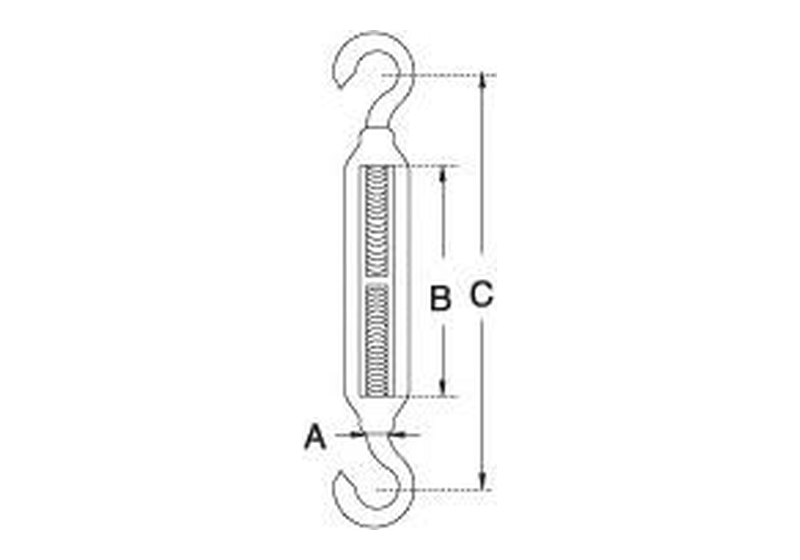

All dimensions in inches unless noted. A = Thread size, B = Body length, C = Overall length, closed.
Ships direct. Shipping is calculated at checkout.
