Description

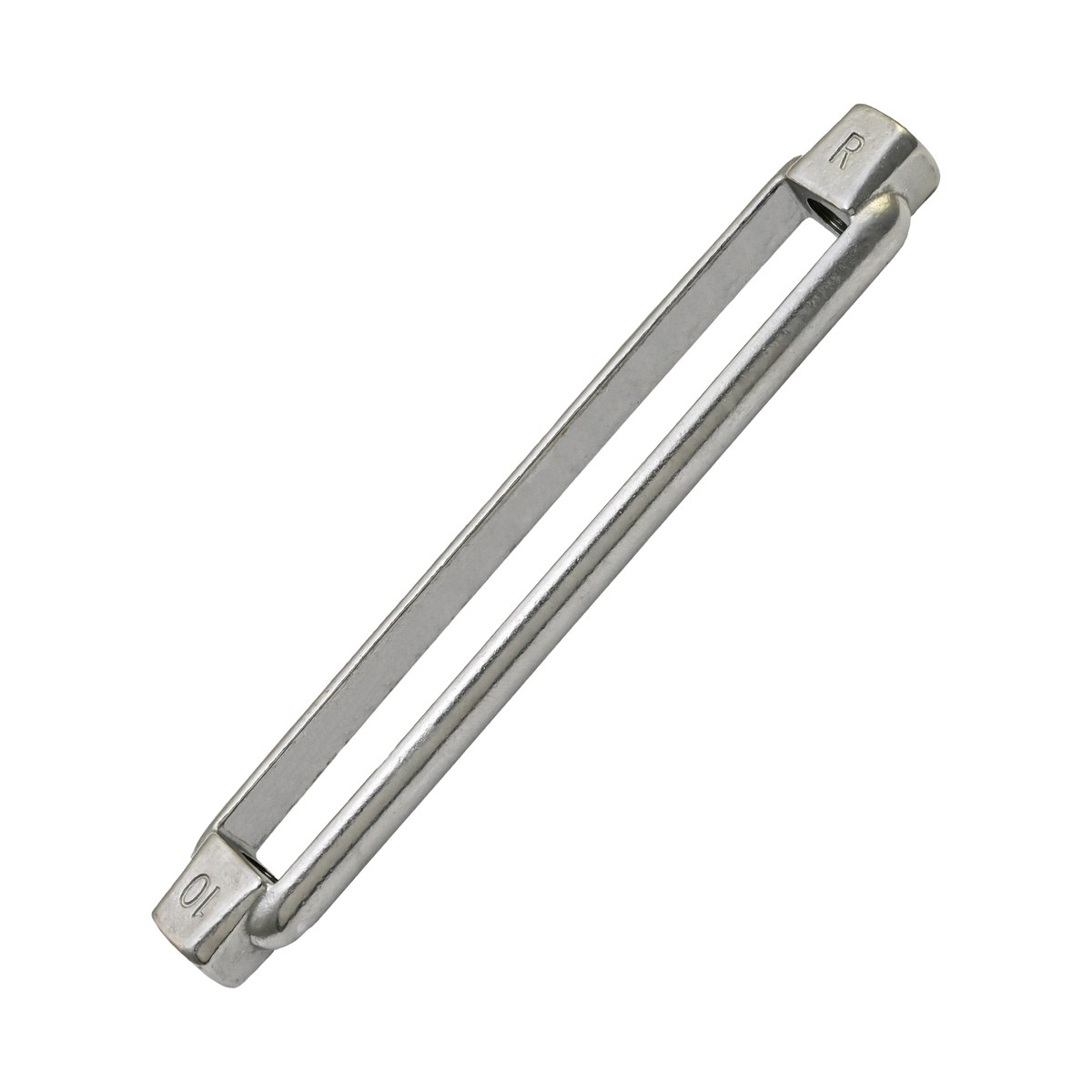

This is the turnbuckle body only, with no end fittings. Use it to replace a damaged body or build a custom turnbuckle with the ends you need.
Common uses are gates, cable runs and rigging repairs.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 200 to 1,200 lb, by size |
| Sizes | 1/4" x 2.75", 3/8" x 4.72" |
| Weight per piece | 0.1 to 0.3 lb, by size |
Dimensions by Size
| Part No. | Size | A: Thread size | B: Overall body length | C: Inside opening length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|
| MT6OB-14 | 1/4" x 2.75" | 1/4" | 3.57 | 2.72 | 0.10 | 450 |
| MT6OB-38 | 3/8" x 4.72" | 3/8" | 6.00 | 4.82 | 0.30 | 1200 |

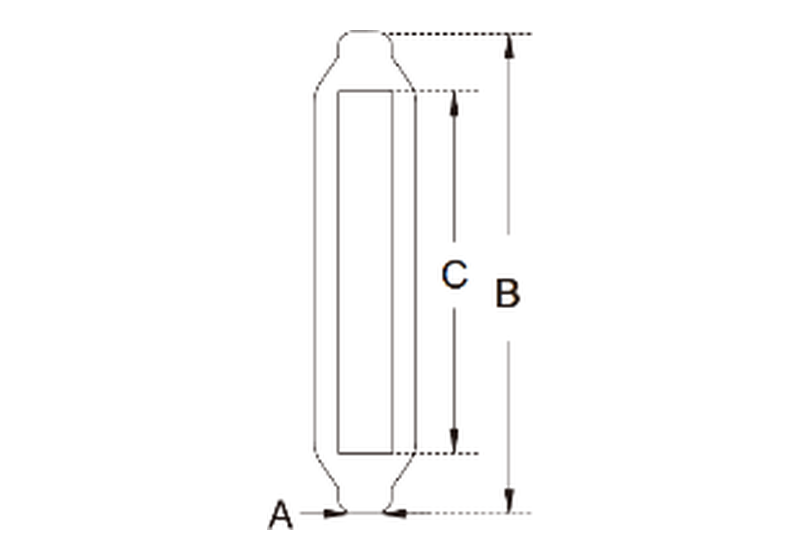

All dimensions in inches unless noted. A = Thread size, B = Overall body length, C = Inside opening length.
Ships direct. Shipping is calculated at checkout.
