Description
A button stop is a small sleeve you swage onto the end of a cable to make a stop or a fixed end. It keeps the cable from pulling back through a hole or fitting.
Use it on cable ends, lanyards, display hangers and pulley stops.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Sizes | 1/16", 3/32", 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2" |
| Weight per piece | 0.0019 to 0.29 lb, by size |
Dimensions by Size
| Part No. | Size | A: Cable size | B: Outside diameter | L: Length | After swage | Weight (lb) |
|---|---|---|---|---|---|---|
| MT6BST-116 | 1/16" | 1/16" | 0.223" | 0.228" | 0.185" | 0.0019 |
| MT6BST-332 | 3/32" | 3/32" | 0.250" | 0.335" | 0.214" | 0.0050 |
| MT6BST-18 | 1/8" | 1/8" | 0.296" | 0.410" | 0.245" | 0.0075 |
| MT6BST-532 | 5/32" | 5/32" | 0.374" | 0.523" | 0.308" | 0.0100 |
| MT6BST-316 | 3/16" | 3/16" | 0.433" | 0.638" | 0.368" | 0.114 |
| MT6BST-14 | 1/4" | 1/4" | 0.627" | 0.736" | 0.554" | 0.054 |
| MT6BST-516 | 5/16" | 5/16" | 0.782" | 1.00" | 0.688" | 0.110 |
| MT6BST-38 | 3/8" | 3/8" | 0.857" | 1.20" | 0.074" | 0.150 |
| MT6BST-12 | 1/2" | 1/2" | 1.100" | 1.36" | 0.990" | 0.290 |

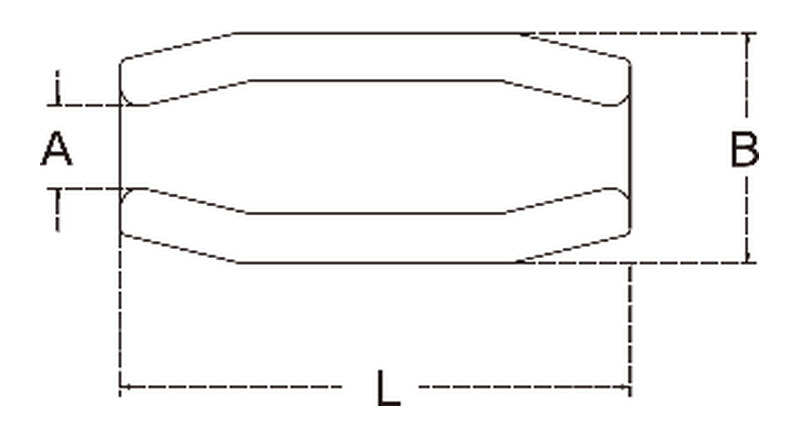

All dimensions in inches unless noted. A = Cable size, B = Outside diameter, L = Length.
