Description

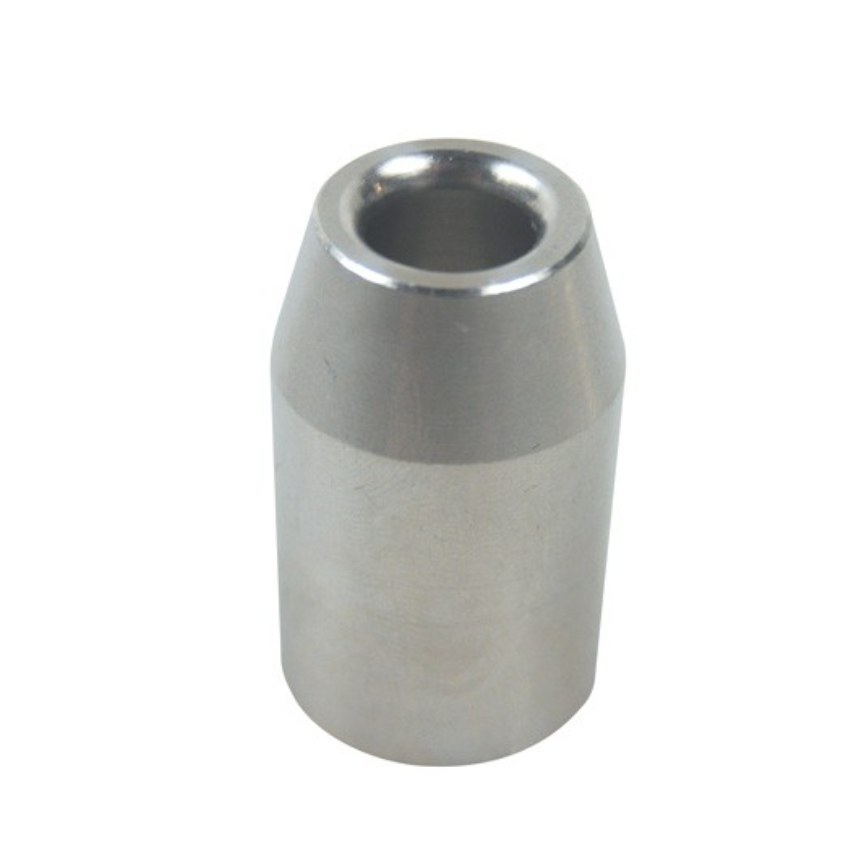

In a Flemish eye, the cable strands are opened up, formed into a loop and then held by a swaged Flemish sleeve. It is a strong termination used on lifting slings.
This sleeve is for sling makers and riggers who have the swaging equipment to press it.
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Sizes | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" |
| Weight per piece | 0.05 to 0.56 lb, by size |
Dimensions by Size
| Part No. | Size | Rope size | A: Bore, wide end | B: Outside diameter | C: Bore, narrow end | L: Length | After swage |
|---|---|---|---|---|---|---|---|
| MT6FLSLEEVE-14 | 1/4" | 1/4" | 0.47" | 0.66" | 0.34" | 1" | 0.57" |
| MT6FLSLEEVE-516 | 5/16" | 5/16" | 0.62" | 0.91" | 0.38" | 1-1/2" | 0.75" |
| MT6FLSLEEVE-38 | 3/8" | 3/8" | 0.66" | 0.91" | 0.47" | 1-1/2" | 0.75" |
| MT6FLSLEEVE-12 | 1/2" | 1/2" | 0.93" | 1.22" | 0.63" | 2" | 1.01" |
| MT6FLSLEEVE-58 | 5/8" | 5/8" | 1.09" | 1.47" | 0.75" | 2-3/4" | 1.24" |
| MT6FLSLEEVE-34 | 3/4" | 3/4" | 1.30" | 1.72" | 0.90" | 3-11/64" | 1.46" |

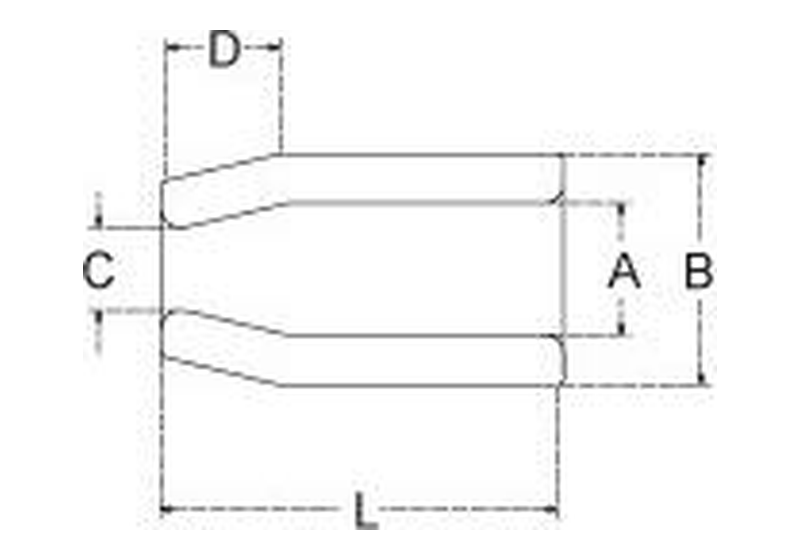

All dimensions in inches unless noted. A = Bore, wide end, B = Outside diameter, C = Bore, narrow end, L = Length.
Ships direct. Shipping is calculated at checkout.
