Description
ADA Radius Elbow for Inside Corners and Post Transitions

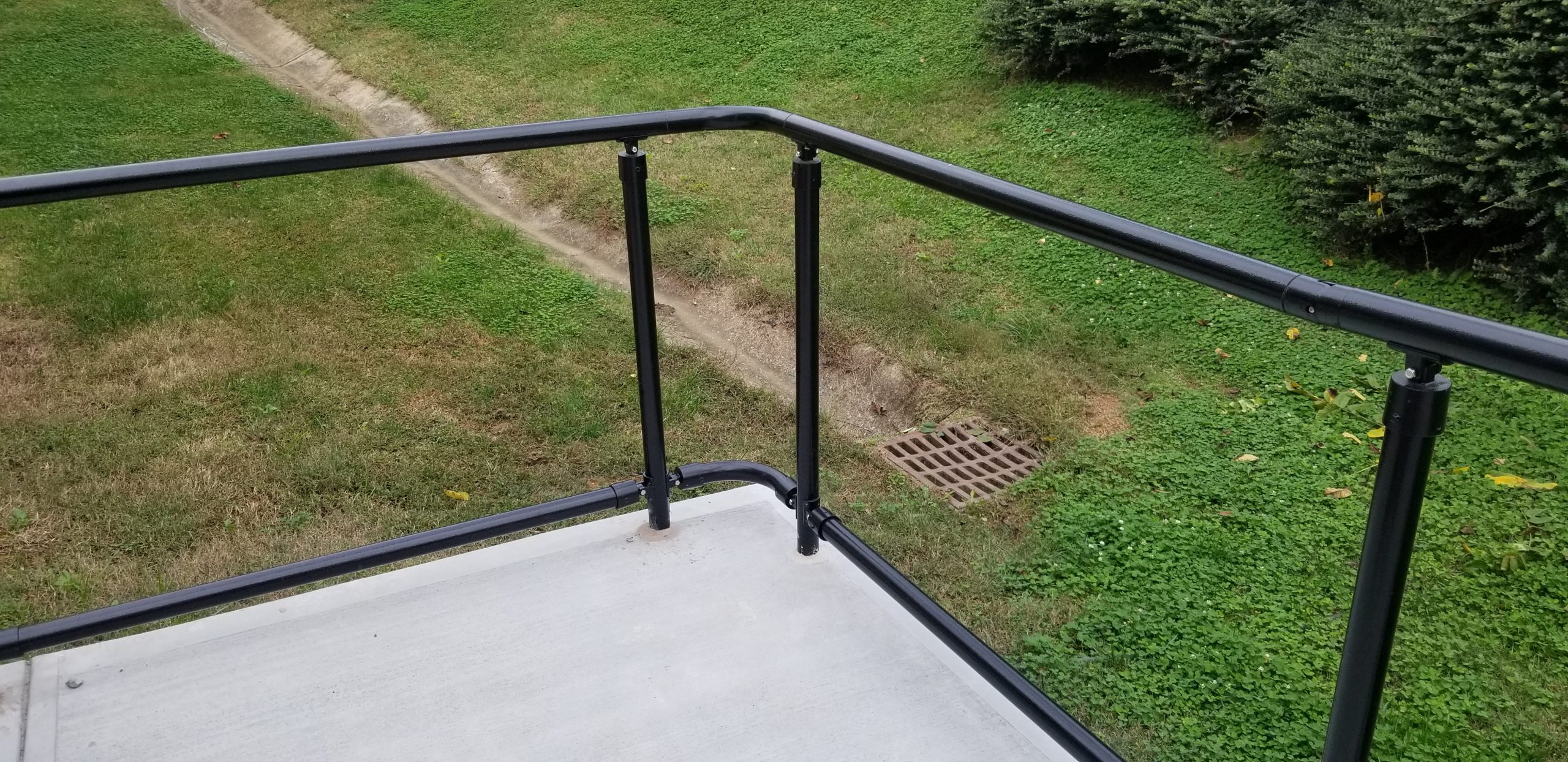

ADA Radius Elbow for Inside Corners and Post Transitions is a pre-formed aluminum handrail component designed to create smooth, continuous transitions in ADA-compliant handrail systems. The radius bend maintains proper hand clearance and flow at directional changes.

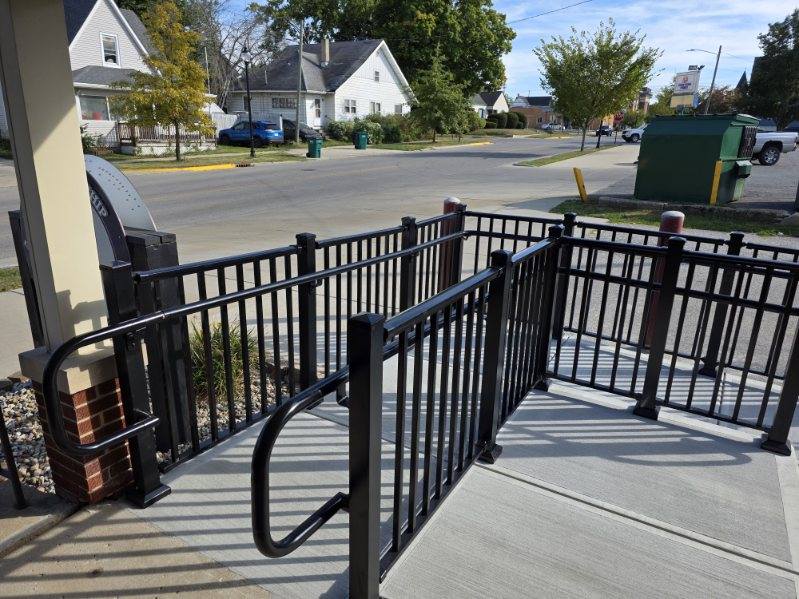

In addition to inside corner applications, this radius elbow can be installed vertically on top of a round post to transition from a vertical post into a horizontal handrail run. This configuration is commonly referred to as a return to floor or post-to-handrail transition.
What’s Included
- One ADA aluminum radius elbow, 90-degree
- Two internal pipe splices
Compatibility
- Fits 1.9 in. OD aluminum pipe with a 1.61 in. inside diameter
- Interior-fit design for ADA round pipe handrail systems
- Compatible with DeckRailing.net ADA handrail kits and components
- Designed for use with round posts when used as a vertical transition
Important Installation Notes
- May be used horizontally for inside corner transitions
- May be installed vertically on a round post as a return-to-floor or post transition
- Interior-fit connections utilize internal pipe splices
- Metal epoxy recommended for permanent installations (sold separately)
Who This Is For
- ADA handrail systems requiring smooth inside corner transitions
- Installations transitioning from vertical posts to horizontal handrail runs
- Projects requiring return-to-floor style handrail geometry
System Benefits
- Maintains continuous, graspable handrail geometry
- Eliminates sharp angles at transitions
- Supports both horizontal and vertical transition applications
Shipping
- Shipping calculated at checkout (orders over $99 ship free)
Warranty
- Manufacturer warranty applies (see product documentation for details)
Helpful Links
Component Identifier: Click Here
Engineering: Click Here
Instructions: Click Here
Splice Kit Instructions: Click Here
