Description

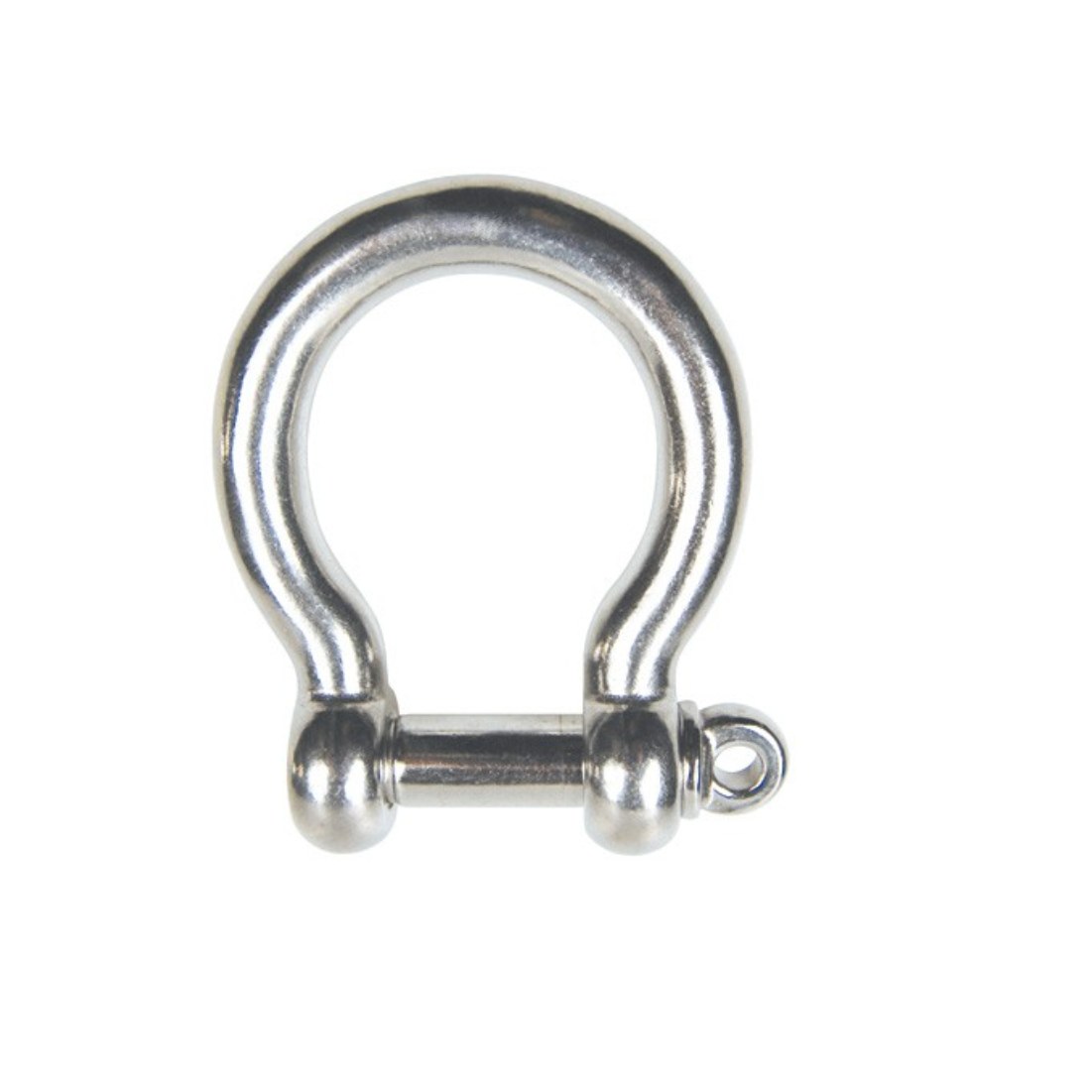

This 316 stainless bow shackle has the widest size range in our shackle line, from a tiny 5/32" (350 lb) to 1-1/2" (18,000 lb). The large rounded bow takes slings and multi-leg loads.
Use it for anything from small sail and awning fittings to heavy anchor and lifting work.
Features
- Precision cast body
- Cast construction
- Screw pin closure
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 350 to 18,000 lb, by size |
| Sizes | 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4" and 1 more |
| Weight per piece | 0.02 to 14.5 lb, by size |
Dimensions by Size
| Part No. | Size | A: Body diameter | B: Pin diameter | C: Inside width | D: Inside length | Weight (lb) | WLL (lb) |
|---|---|---|---|---|---|---|---|
| MT6BSHK-532 | 5/32" | 5/32" | 5/32" | 11/32" | 3/4" | 0.02 | 350 |
| MT6BSHK-316 | 3/16" | 3/16" | 3/16" | 7/16" | 3/4" | 0.031 | 520 |
| MT6BSHK-14 | 1/4" | 1/4" | 1/4" | 15/32" | 1-1/8" | 0.06 | 750 |
| MT6BSHK-516 | 5/16" | 5/16" | 5/16" | 5/8" | 1-1/2" | 0.12 | 1,300 |
| MT6BSHK-38 | 3/8" | 3/8" | 3/8" | 3/4" | 1-5/8" | 0.25 | 1,750 |
| MT6BSHK-12 | 1/2" | 1/2" | 1/2" | 1-1/16" | 2" | 0.58 | 2,850 |
| MT6BSHK-58 | 5/8" | 5/8" | 5/8" | 1-5/16" | 2-15/32" | 1.00 | 4,000 |
| MT6BSHK-34 | 3/4" | 3/4" | 3/4" | 1-3/4" | 3-1/8" | 2.10 | 5,600 |
| MT6BSHK-78 | 7/8" | 7/8" | 7/8" | 1-13/16" | 3-7/8" | 2.52 | 6,700 |
| MT6BSHK-1 | 1" | 1" | 1" | 2" | 4-3/8" | 3.80 | 9,000 |
| MT6BSHK-118 | 1-1/8" | 1-1/8" | 1-1/16" | 2-11/32" | 4-1/2" | 5.80 | 9,600 |
| MT6BSHK-114 | 1-1/4" | 1-1/4" | 1-1/4" | 2-1/2" | 5-7/16" | 9.50 | 10,000 |
| MT6BSHK-112 | 1-1/2" | 1-1/2" | 1-1/2" | 3" | 5-3/4" | 14.50 | 18,000 |
All dimensions in inches unless noted. A = Body diameter, B = Pin diameter, C = Inside width, D = Inside length.
