Description

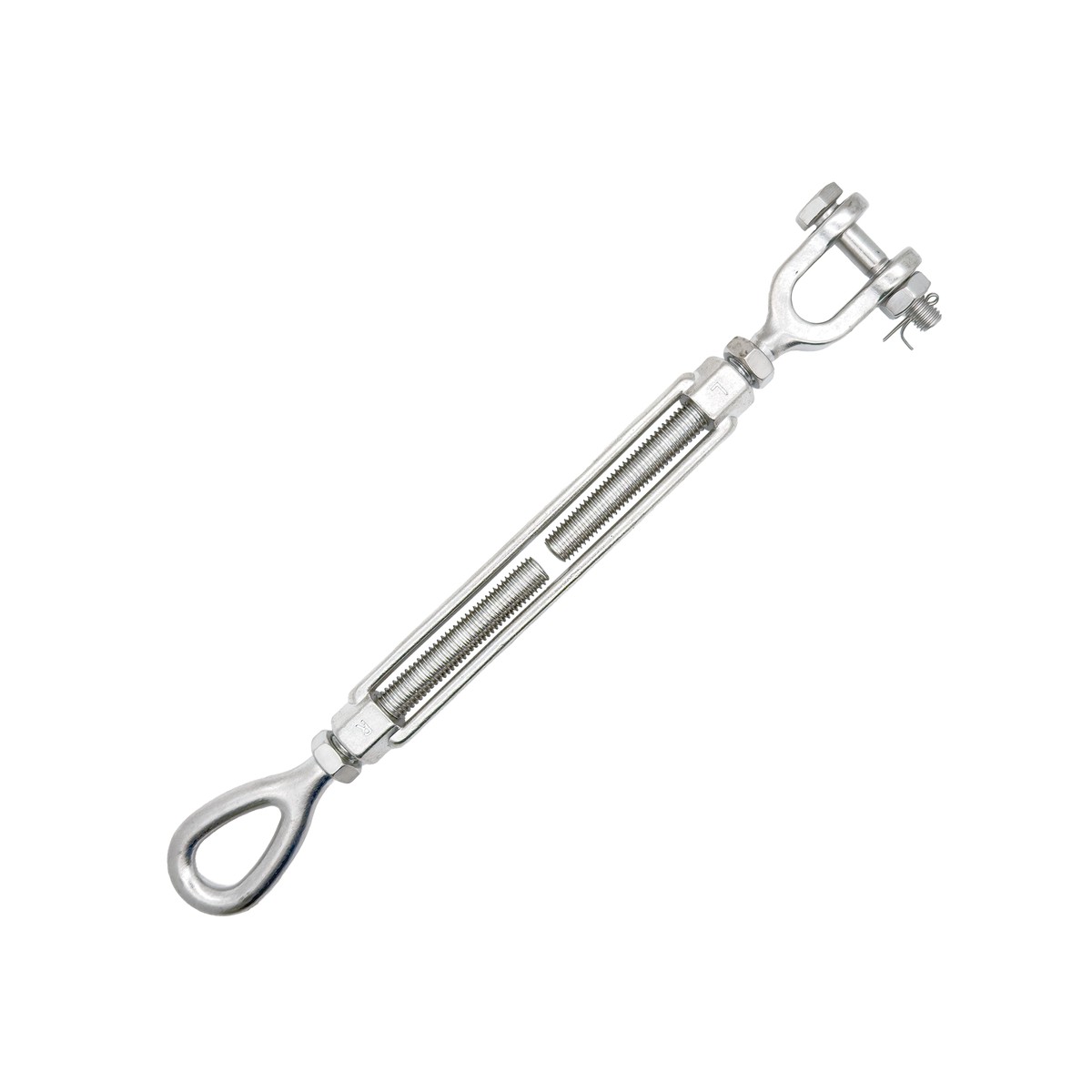

This US style jaw and eye turnbuckle pins to a fixed tab on one end and takes a shackle or thimble eye on the other. WLL ranges from 575 to 9,250 lb, depending on size.
Use it on guy wires, bracing and rigging that attaches to a plate at one end.
Features
- UNC threading
Specifications
| Material | 316 Stainless Steel (AISI 316) |
|---|---|
| Working load limit | 575 to 9,250 lb, by size |
| Sizes | 1/4″ x 4″, 5/16″ x 4-1/2″, 3/8″ x 6″, 1/2″ x 6″, 1/2″ x 12″, 5/8″ x 6″, 5/8″ x 12″, 3/4″ x 6″, 3/4″ x 12″, 1″ x 6″, 1″ x 12″ |
| Weight per piece | 0.47 to 11.2 lb, by size |
Dimensions by Size
| Part No. | Size | A: Thread size | B: Body length | WLL (lb) |
|---|---|---|---|---|
| MT6OBTBK-JE14-4USA | 1/4″ x 4″ | 1/4″ | 4″ | 500 |
| MT6OBTBK-JE516-412USA | 5/16″ x 4-1/2″ | 5/16″ | 4-1/2″ | 800 |
| MT6OBTBK-JE38-6USA | 3/8″ x 6″ | 3/8″ | 6″ | 1,200 |
| MT6OBTBK-JE12-6USA | 1/2″ x 6″ | 1/2″ | 6″ | 2,200 |
| MT6OBTBK-JE12-12USA | 1/2″ x 12″ | 1/2″ | 12″ | 2,200 |
| MT6OBTBK-JE58-6USA | 5/8″ x 6″ | 5/8″ | 6″ | 2,800 |
| MT6OBTBK-JE58-12USA | 5/8″ x 12″ | 5/8″ | 12″ | 2,800 |
| MT6OBTBK-JE34-6USA | 3/4″ x 6″ | 3/4″ | 6″ | 3,500 |
| MT6OBTBK-JE34-12USA | 3/4″ x 12″ | 3/4″ | 12″ | 3,500 |
| MT6OBTBK-JE1-6USA | 1″ x 6″ | 1″ | 6″ | 5,500 |
| MT6OBTBK-JE1-12USA | 1″ x 12″ | 1″ | 12″ | 5,500 |

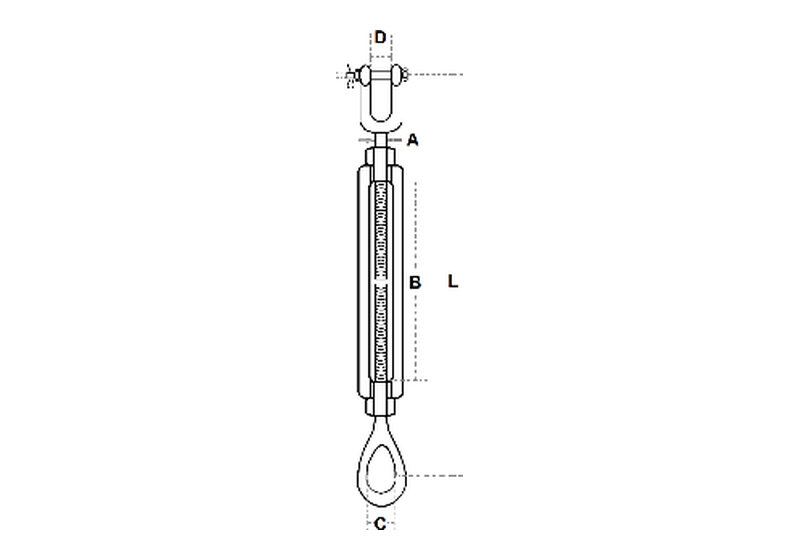

All dimensions in inches unless noted. A = Thread size, B = Body length.
